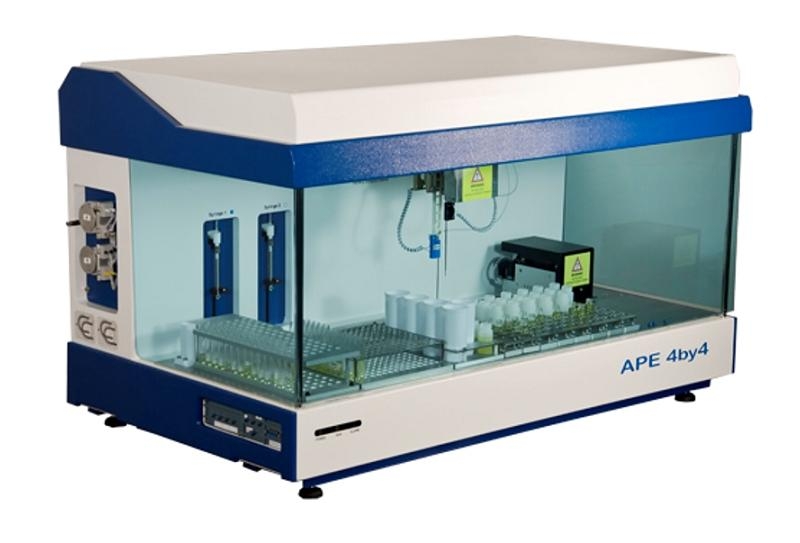

Fully Automated ELISA 4 micro-plate model APE 4by4
APE 4by4 is the latest version of the family able to process four plates with differentiated temperatures.
Its user friendly approach for both software and hardware allows the operator to start working with the instrument as soon as it is out of the box, no pre-adjustments or calibrations are required.
| TECHNICAL SPECIFICATIONS |
|
| Predilution rack: | 1 tray with 195 tubes |
| Reagents holders: | modular racks to hold calibrators, controls and reagents for 10 methods on line |
| Liquid reservoirs: | external tanks equipped with level sensors and 4 washing buffer bottles |
| Microtiter plates: | 4 standard plates (96 wells) with incubation capability, from room temperature to 45 °C |
| Dispensing system: | X-Y-Z movement with 2 independent needles, each one equipped with its own liquid sensor |
| Microplate washing: | two 8 nozzle on line manifolds able to adapt itself for the different microplates height |
| Reading system: | 8 independent photo-metric channels for mono and bichromatic readings |
| Optical filters: | 2 filters (450 and 630 nm); 2 more on request (maxima 4 filters) |
| Reading inaccuracy: | reading 0.000 – 3.000 OD; inaccuracy ±1% 0.000 - 1.500 OD; ±2% 1.500 - 3.000 OD |
| Aspiration: | from 8 µl to 1000 µl, 1µl resolution, inaccuracy ± 1% with 100 µl |
| Software: | to set up the work list, patient reports and result filing; calibration curves storage for each carried-out test. LIS interface |
| Operating system: | Windows 7 and XP |
| Communication: | USB |
| Power: | VAC 230/115, Hz 50-60, W 600 |
| Dimensions: | 113 x 65 x 67 cm |
| Weight: | 104 kg |
| Optional: | Sample Bar Code Reader |
